16ft Line Set Kit, For 9K or 12K Mini Split
Original price was: $159.00.$129.00Current price is: $129.00.
- Ships UPS Ground, lower 48 · tracking emailed to you
- Ship It Today option at checkout
16ft Line Set Kit, For 9K or 12K Mini Split
- 16 ft flared line set – 1/4" liquid + 3/8" suction lines with 0.8mm wall thickness
- Complete kit in one box – Insulated copper lines plus drain pipe, cable, and wall hardware
- Factory-flared ends – For secure, leak-resistant connections
- Heavy-duty 16 AWG communication cable – 600V / 105°C rated – thicker and more robust than standard 18 AWG
- Ships UPS Ground, lower 48 – Tracking emailed to you
- Ship It Today option – Available at checkout
16ft Flared Line Set Kit
Get a clean, professional mini-split installation without piecing parts together. The AR 16 ft Line Set Kit includes insulated copper lines plus all core accessories needed to connect your indoor unit to your outdoor condenser — everything in one box.
Built for 9K–12K mini-split systems that need up to a 16-foot line. Get reliable performance and a clean professional installation with the AR Line Set 16ft from Absolute Refrigerants.
Features
- 1/4" liquid + 3/8" suction lines with 0.8mm wall thickness
- 16-foot length – ideal for shorter runs in homes, rentals, garages, and compact installations
- Factory-flared ends for secure, leak-resistant connections
- Upgraded heavy-duty 16 AWG communication cable (600V / 105°C rated – thicker and more robust than standard 18 AWG)

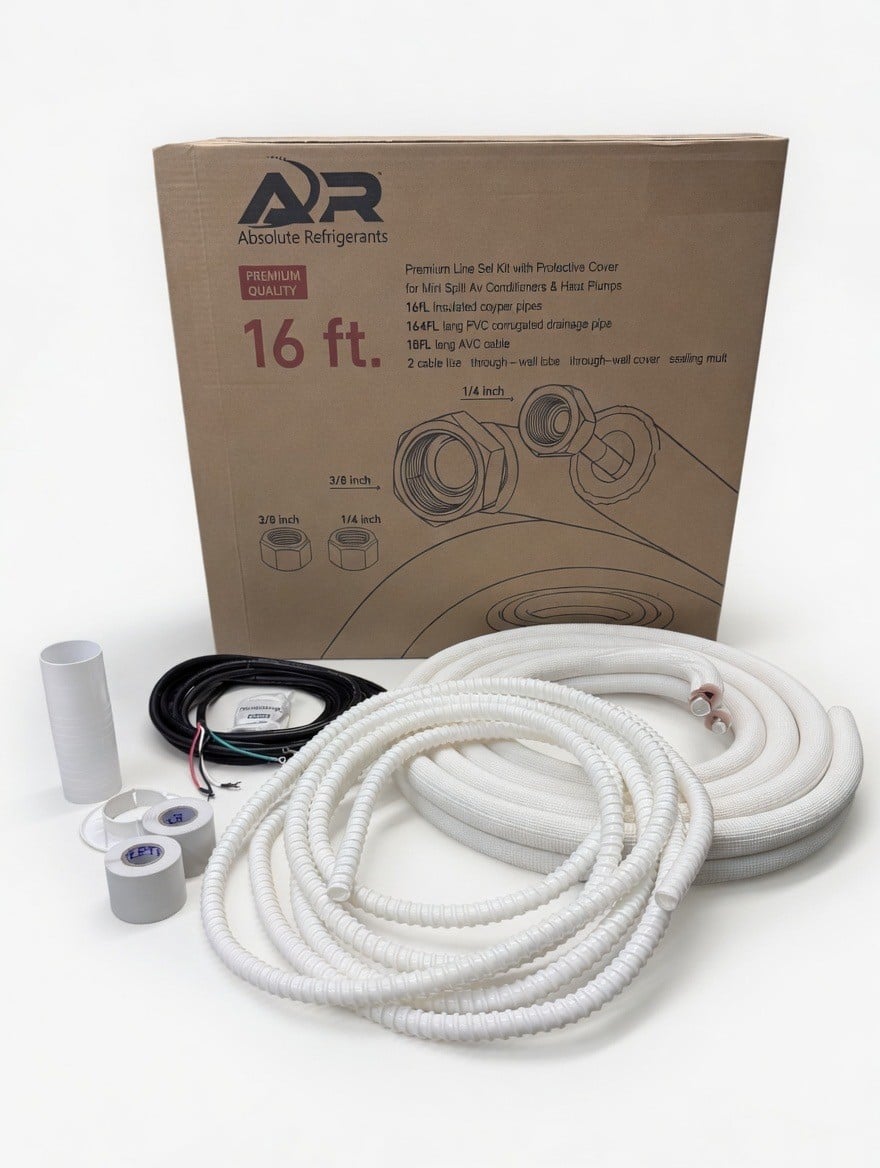

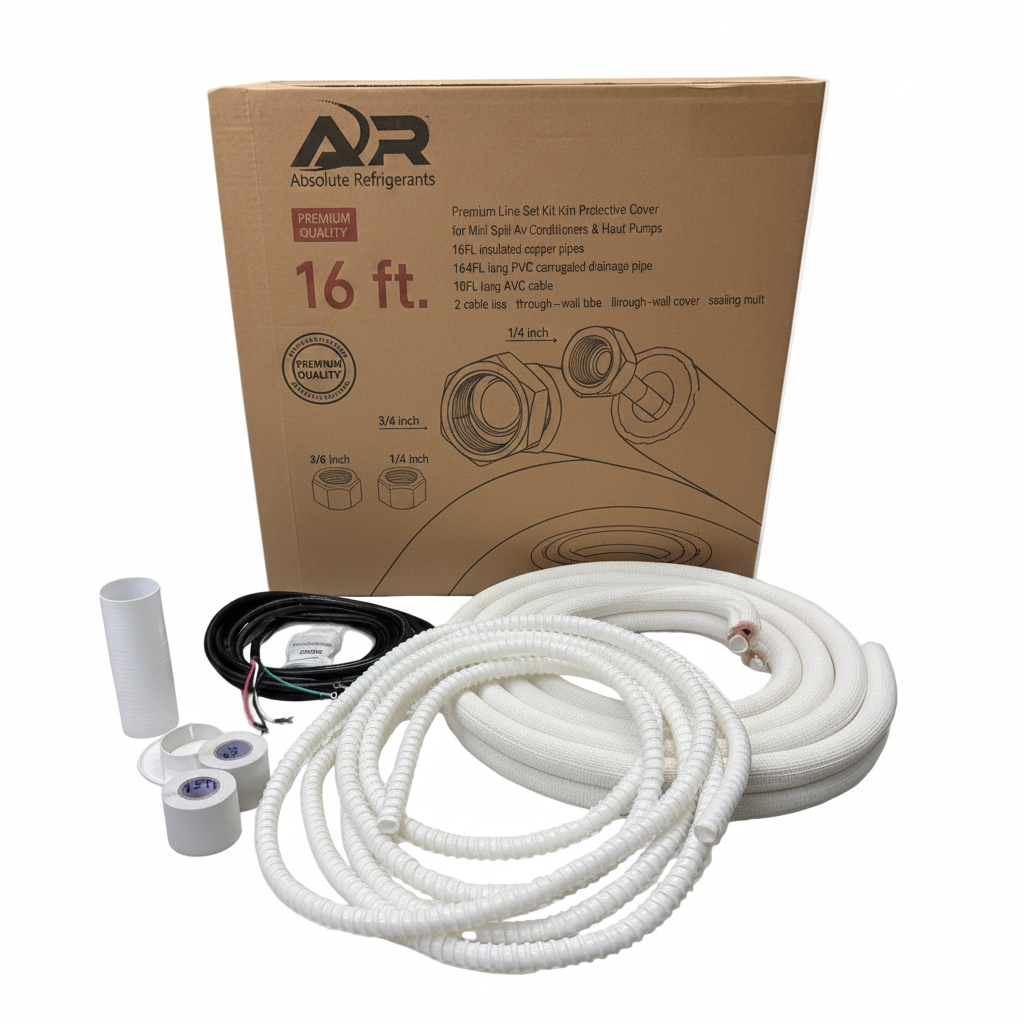

What's Included in the Box
- Insulated copper pipes (1/4" + 3/8" × 16 ft)
- 5-meter (16.4 ft) PVC corrugated drainage pipe
- 5.5-meter (18 ft) heavy-duty 16 AWG communication cable (600V / 105°C rated)
- 2 cable ties
- Through-wall tube
- Through-wall cover
- Sealing mud
Specifications
- Length: 16 ft
- Line Size: 1/4" × 3/8"
- Connection Type: Flared
- Compatible Systems: 9K & 12K mini-split systems
- Pre-Charged: No
System Compatibility
Compatible with most 9K and 12K mini-split systems requiring a 1/4" liquid line and 3/8" suction line, including wall-mounted and ceiling cassette units. Always verify your system's required line sizes before purchasing.
Installation Notes
Confirm line sizes with your equipment. Torque flare nuts to manufacturer specifications. Secure lines properly and have a licensed HVAC technician vacuum and charge the system before startup. Get reliable performance and a clean installation with the AR Line Set 16ft from Absolute Refrigerants.
